Transport drone
Transport drone
A heavy transport drone for carrying robots, modules and loads into hard-to-reach places. We deliver the robot where access is impossible.
Delivers the robot where there is no road
At a glance
A heavy transport drone for carrying robots, modules and loads into hard-to-reach places. We deliver the robot where access is impossible.
- Maximum payload
- 500 kg
- Drone weight
- 90 kg
- Construction
- modular
- Carries
- robots · modules · loads
We build robots around the client’s specific process - starting from our own prototypes, adapted to purpose. We fit the technology to the process, not the other way around.
PriceOn request

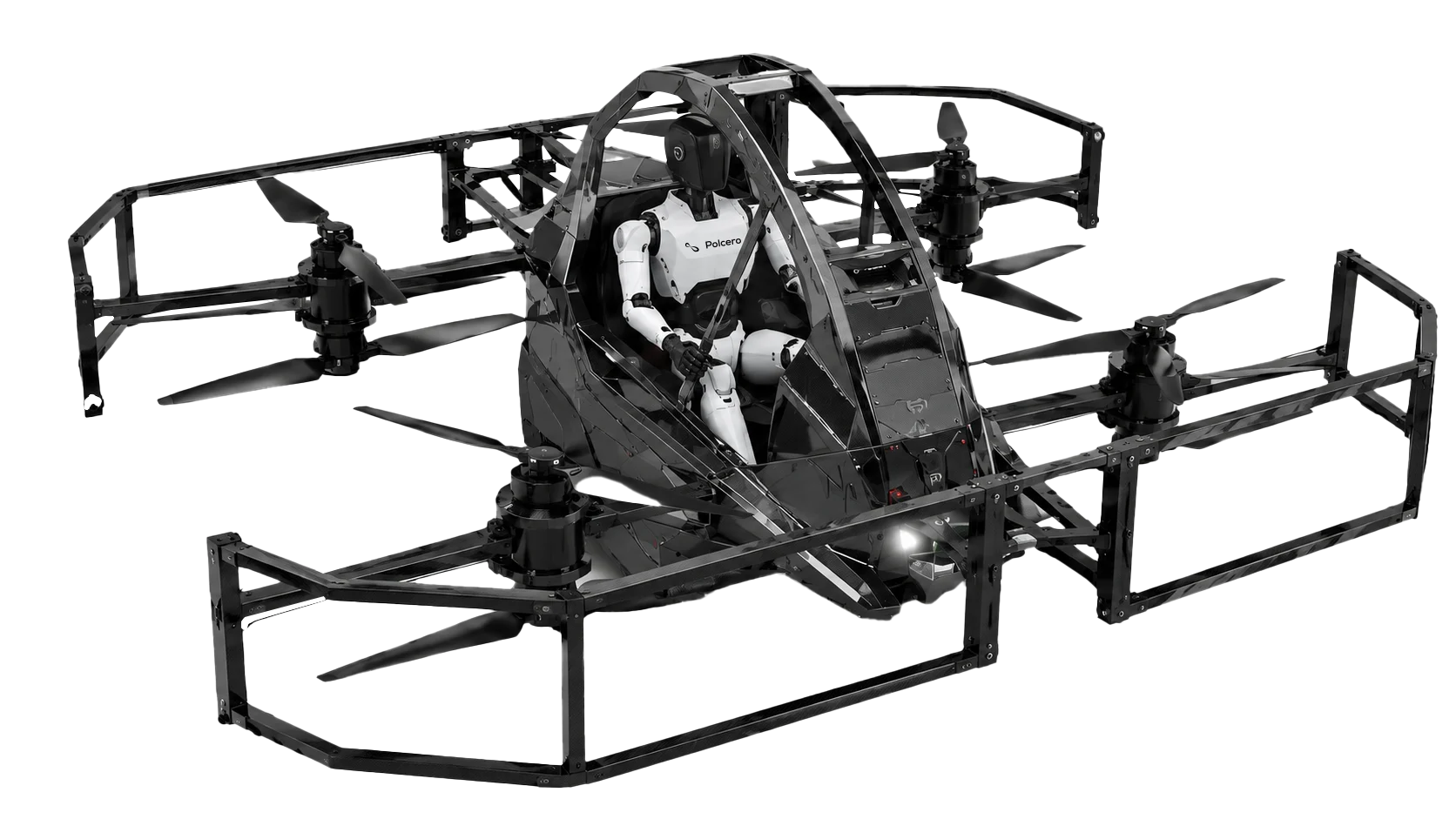

The drone carries the robots
Our aim is for the drone to carry robots and humanoids over the longer distances, so the robots keep their energy for the task instead of spending it getting there. The drone also carries interchangeable modules and chassis, so a robot arrives able to pick the task module and platform its environment demands.
- It also ferries charged 48 V hot-swap packs, so the robots it delivers arrive with full batteries and spend their energy on the work, not the journey.
- Robots ride to site with full batteries and land ready to work.
- Interchangeable chassis and task modules travel with the drone.
- Delivery where the road ends — mountains, sites without paved roads, areas cut off after a flood.
- The missing link of the hourly-rental model: one robot serves several clients the same day.
Use cases
What we use this model for.
- 01Delivering robots, modules and loads to hard-to-reach places
- 02Deliveries after a failure or flood
- 03Transport into mountainous and forested terrain
- 04Supplying construction sites without roads

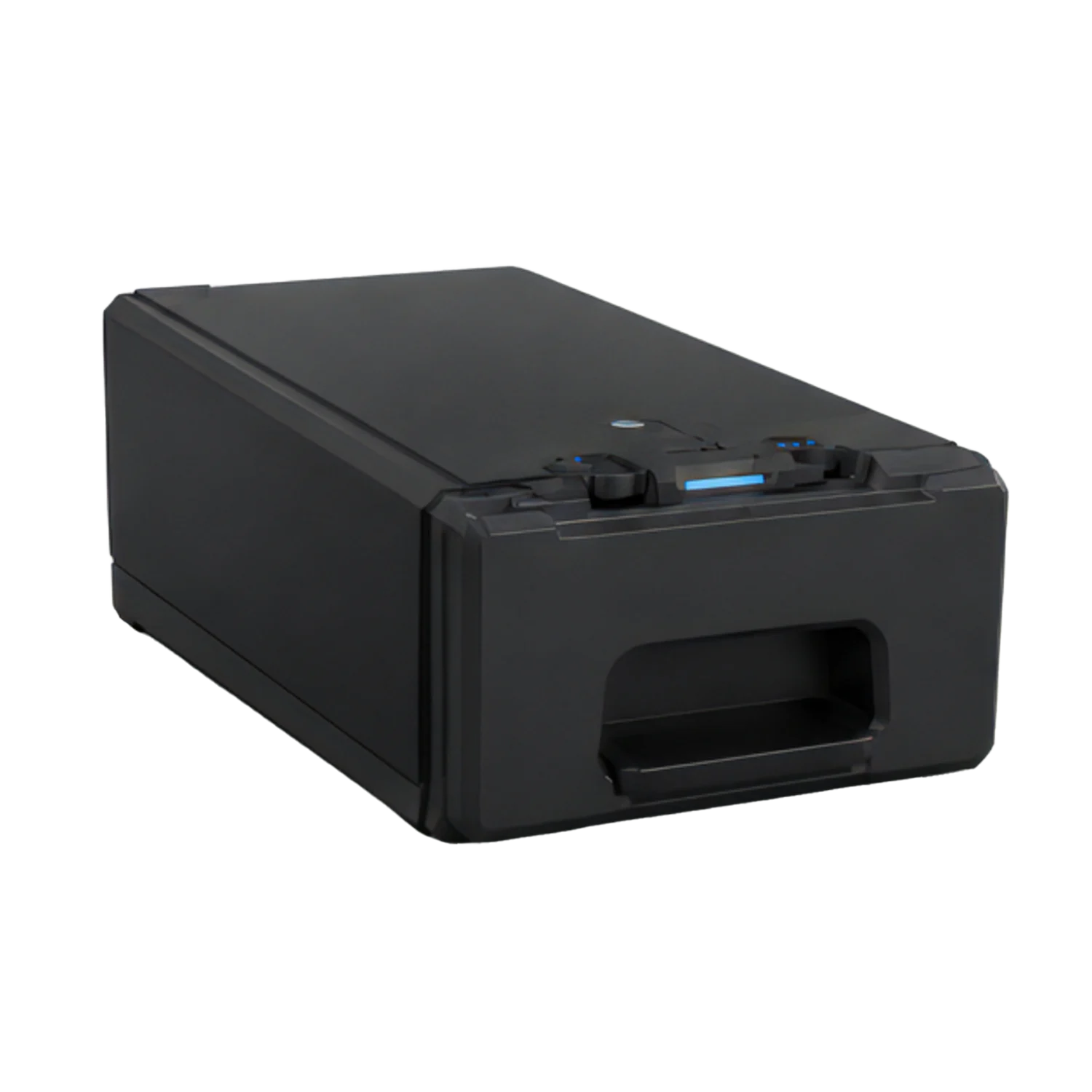

Battery
The drone flies on a single high-discharge flight pack that drives eight independent electric motors. The pack is hot-swapped between flights, so turnaround is a battery change rather than a recharge wait.
- Battery
- 6.5 kWh high-discharge Li-ion
- Motors
- 8 × A45 brushless, rewound, 75 KV
- Total propulsion power
- ≈ 40 kW nominal
- ESC current
- 180 A (200 A peak) per unit
- System voltage
- 54 V
- Max discharge current
- ≈ 1,800 A
- Propellers
- 8 × 55×15 (5515)
- Turnaround
- Hot-swap flight pack between flights
Specification
Construction
- Material
- Carbon composites
- Modular construction
- Yes
Transport
- Maximum payload
- 500 kg
- Own weight
- 90 kg
- Carries robots and modules
- Yes
Drive & mobility
- Drive
- Multirotor
AI & software
- Autonomy
- Yes
- Control and task equipment
- In development
- Data & compliance in the EU
- Yes
Values are design assumptions; the product is under development and configuration may change. Please confirm details with sales.
